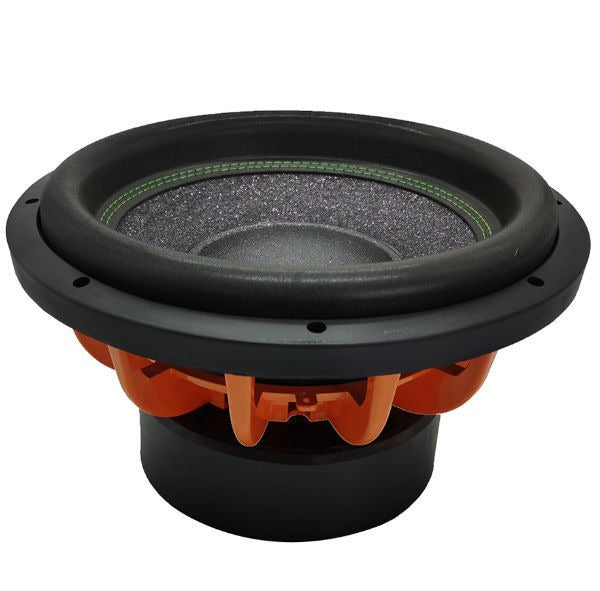

Dual Voice Coil 12" Car Subwoofer Speaker – 1200W RMS, 2500W Peak, High Power Car Audio
Dual Voice Coil 12" Car Subwoofer Speaker – 1200W RMS, 2500W Peak, High Power Car Audio
Dual Voice Coil 12" Car Subwoofer Speaker – 1200W RMS, 2500W Peak, High Power Car Audio
Model No.: RC-SW-004
The IRRICO RC-SW-004 is a professional dual voice coil 12" car subwoofer speaker designed for high-performance car audio systems. With 1200W RMS (2500W peak), dual 65mm ASV voice coils, dual 195oz magnet structure, and 88dB sensitivity, this subwoofer delivers deep, powerful bass for automotive sound systems. Perfect for car audio enthusiasts, custom installs, and bass-heavy music genres.
Massive 1200W RMS Power Handling – Delivers 1200W RMS (2500W peak) of clean, powerful bass. Dual voice coil design allows flexible wiring options (2Ω or 8Ω) for maximum amplifier compatibility and performance.
Dual High-Energy Magnet Structure – Features dual 170×80×30mm magnets with a combined 195 oz magnetic weight for exceptional motor strength and tight, controlled bass reproduction.
Dual 65mm ASV Voice Coils – High-temperature ASV (Aluminum-clad copper wire) voice coils provide excellent thermal management and power handling – built to withstand demanding high-power applications.
Premium Cone & Surround Construction – Leather grain non-pressed paper cone provides stiffness and durability while maintaining responsive transient attack. Sponge surround ensures long-throw excursion for deep bass extension.
Wide Frequency Response – Frequency range from 45Hz to 1200Hz covers deep sub-bass to upper bass frequencies – perfect for sealed or ported enclosures.
Standard 4Ω Impedance per Coil – Dual 4Ω voice coils allow wiring configurations for 2Ω (parallel) or 8Ω (series) operation – compatible with a wide range of monoblock and multi-channel amplifiers.
88dB Sensitivity – 88dB sensitivity (1W/1m) provides good efficiency for car audio applications – works well with moderate-power amplifiers while delivering impressive output.
Professional Car Audio Grade – Designed specifically for automotive environments – built to withstand vibration, temperature extremes, and long-term use in vehicles.
Specifications:
- Model No.: RC-SW-004
- Product Type: 12" Dual Voice Coil Car Subwoofer
- Cone Material: Leather Grain Non-Pressed Paper
- Surround Material: Sponge
- Voice Coil: Dual 65mm ASV (Aluminum-clad Copper Wire)
- Magnet: Dual 170×80×30mm (Total 195 Oz)
- Impedance: 4Ω per coil (Dual 4Ω)
- RMS Power: 1,200W
- Peak Power: 2,500W
- Sensitivity: 88 dB (1W/1m)
- Frequency Response: 45Hz – 1,200Hz
Wiring Configurations:
- Parallel: 2Ω (both coils connected in parallel) – maximum power from amplifier
- Series: 8Ω (both coils connected in series) – for stable operation with high-impedance amplifiers
- Individual: 4Ω per coil – for dual amplifier setups or multi-channel use
Key Features:
- ✅ 1,200W RMS / 2,500W peak – massive power handling
- ✅ Dual 65mm ASV voice coils – high-temperature resistance
- ✅ Dual magnet structure – 195 oz total magnetic weight
- ✅ Leather grain non-pressed paper cone – stiff & responsive
- ✅ Sponge surround – long-throw excursion
- ✅ 45Hz-1,200Hz frequency response – deep, punchy bass
- ✅ Dual 4Ω impedance – flexible wiring options (2Ω/8Ω)
- ✅ 88dB sensitivity – efficient performance
- ✅ Professional car audio grade – built for automotive use
Applications:
- Car Audio Subwoofer Systems
- Custom Vehicle Sound Installations
- Competition Car Audio (SPL & SQ)
- Sealed & Ported Enclosures
- Upgrading Factory Audio Systems
- Home Theater Subwoofer Projects
- DIY Speaker Building
Recommended Enclosure Types:
- Sealed Box: For tight, accurate bass – smaller enclosure size
- Ported Box: For maximum output and deeper bass extension
- Bandpass: For extreme SPL applications
Why Choose This Car Subwoofer:
The RC-SW-004 is a high-performance 12" dual voice coil car subwoofer engineered for bass enthusiasts who demand power and reliability. With 1200W RMS power handling, dual 65mm ASV voice coils, and a massive 195 oz dual magnet structure, this subwoofer delivers deep, impactful bass that can handle the most demanding music genres. The flexible dual 4Ω impedance configuration allows easy integration with any amplifier, while the premium leather grain paper cone and sponge surround ensure durability and long-throw excursion. Whether you're building a competition-level SPL system or simply upgrading your daily driver's bass, this subwoofer delivers professional-grade performance.
