Professional Audio 600W PA Speaker – 12" Active Subwoofer 1.1 Channel with DSP for Party & Karaoke

Model No.: RC-PA-008

The IRRICO RC-PA-008 is a professional 1.1 channel active PA system featuring a 12" active subwoofer (600W total power: 400W LF + 200W HF), 6" midrange driver, and 1" horn tweeter. With Class D amplification, powerful DSP with 4 sound programs (Music, Live, Language, DJ/Club), 3-channel mixer, and complete accessories including stand and cables, this portable 3-way system is perfect for parties, karaoke, DJ events, live performances, and professional sound reinforcement.

600W Class D Power – Delivers 600W total system power (400W LF + 200W HF) through a 12" active subwoofer, 6" midrange driver, and 1" horn tweeter. High headroom provides outstanding clarity and impact.

120dB Peak SPL – Maximum 120dB peak sound pressure level fills venues with clear, powerful sound – perfect for parties, DJ events, and professional applications.

Wide Frequency Response – Frequency range from 60Hz to 20kHz (-10dB) with flat response (+/-3dB) from 60Hz to 18kHz covers the full audio spectrum – from punchy bass to clear, detailed highs.

3-Way Full-Range Design – Portable 3-way full-range loudspeaker system with powered amplifier. Separate drivers for lows, mids, and highs deliver exceptional clarity and accuracy.

Powerful DSP with 4 Sound Programs – Built-in DSP optimization with 4 selectable sound programs: Music, Live, Language, and DJ/Club. Instantly configure your sound for any application with one button. On-board DSP limiting for system protection.

3-Channel Built-in Mixer – Features 3-channel mixer input for line/microphone sources. 2 x 1/4" TS/XLR connectors (unbalanced) for microphones or line-level devices, plus 1 pair 3.5mm stereo jack for additional sources.

Line Output for Expansion – 1 x XLR line output (unbalanced) for connecting additional powered speakers or recording devices.

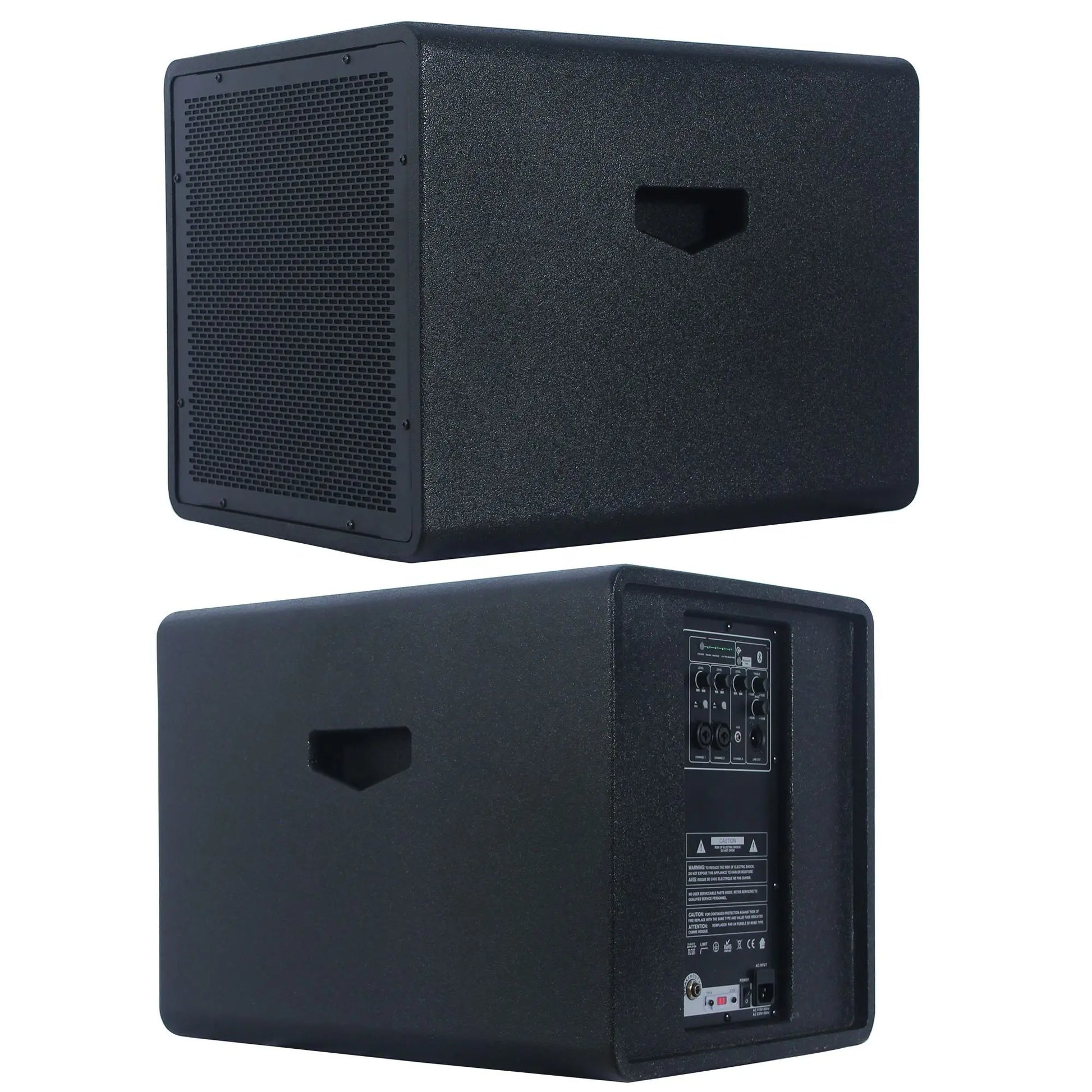

Portable & Professional Design – Wooden cabinet construction for superior acoustic performance. Powder-coated perforated steel speaker grille for driver protection. Includes speaker stand (1M), 3m speaker cable (unbalanced), and power cable.

Global Power Compatibility – AC input accepts 100-120V or 220-240V at 50/60Hz for worldwide use – perfect for international events and export.

Complete System Package – Includes 1M speaker stand, 3m unbalanced speaker cable, and power cable. Everything you need for professional setup right out of the box.

Specifications:

• Model No.: RC-PA-008
• System Type: 1.1 Channel Active 3-Way PA System
• Total System Power: 600W (400W LF + 200W HF)
• Amplifier Design: Class D
• Maximum SPL: 120 dB Peak
• Frequency Range (-10dB): 60Hz – 20kHz
• Frequency Response (+/-3dB): 60Hz – 18kHz
• Subwoofer: 12" Active (Wooden Cabinet)
• Midrange Driver: 6"
• Tweeter: 1" Horn
• DSP: Powerful with 4 Sound Programs (Music/Live/Language/DJ-Club)
• System Limiter: On-board DSP Limiting
• Mixer Channels: 3-Channel Mixer
• Mic/Line Inputs: 2 x 1/4" TS/XLR (Unbalanced)
• Stereo Input: 1 pair 3.5mm Stereo Jack
• Line Output: 1 x XLR (Unbalanced)
• Speaker Grille: Powder-coated Perforated Steel
• Cabinet Material: Wooden
• Power Supply: AC 100-120V or 220-240V (50/60Hz)

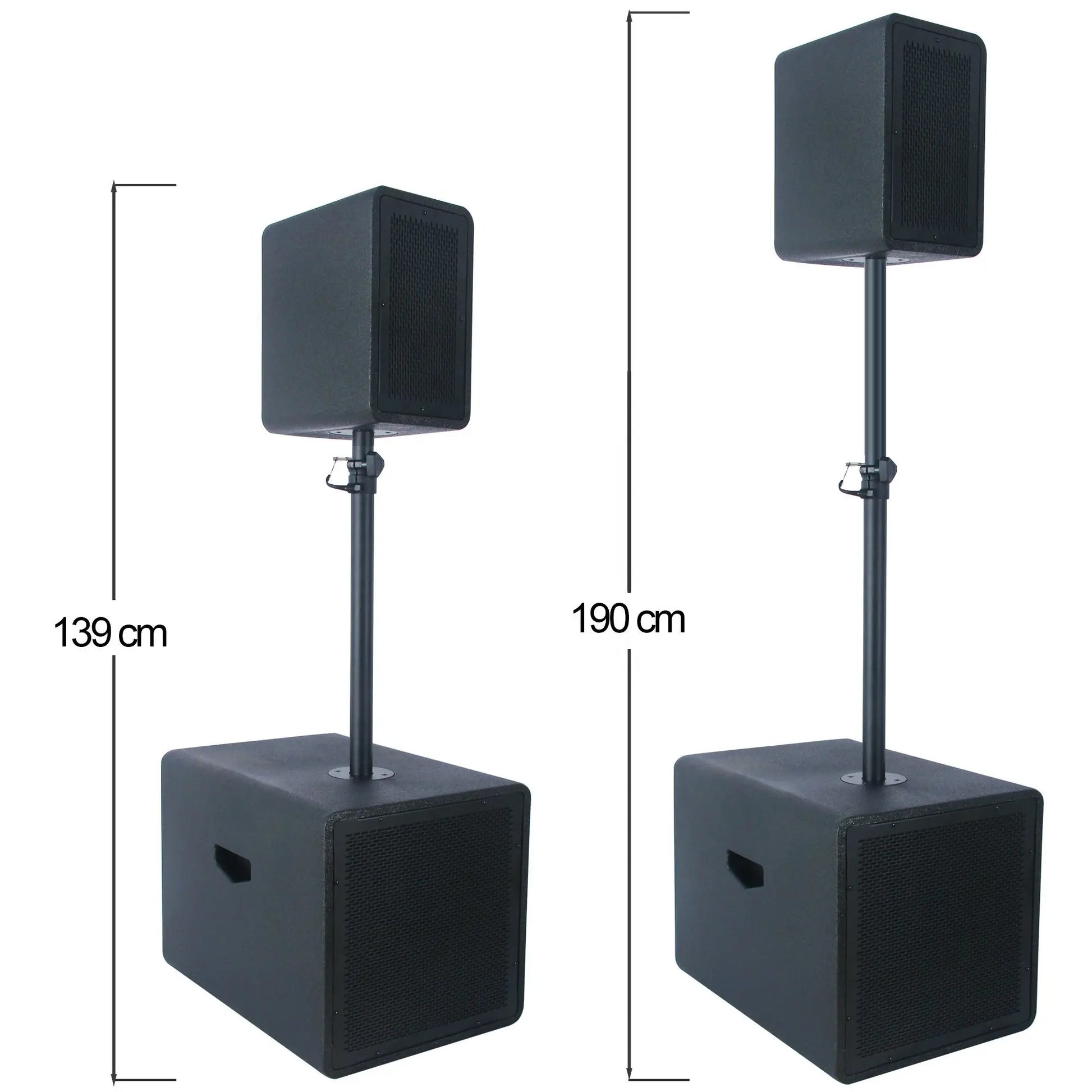

• Accessories: 1M Speaker Stand, 3m Speaker Cable (Unbalanced), Power Cable

DSP Sound Programs (4 Modes):

• 🎵 Music – Optimized for music playback
• 🎤 Live – Enhanced for live performances
• 🗣️ Language – Clear speech intelligibility
• 🎧 DJ/Club – Powerful bass for dance music

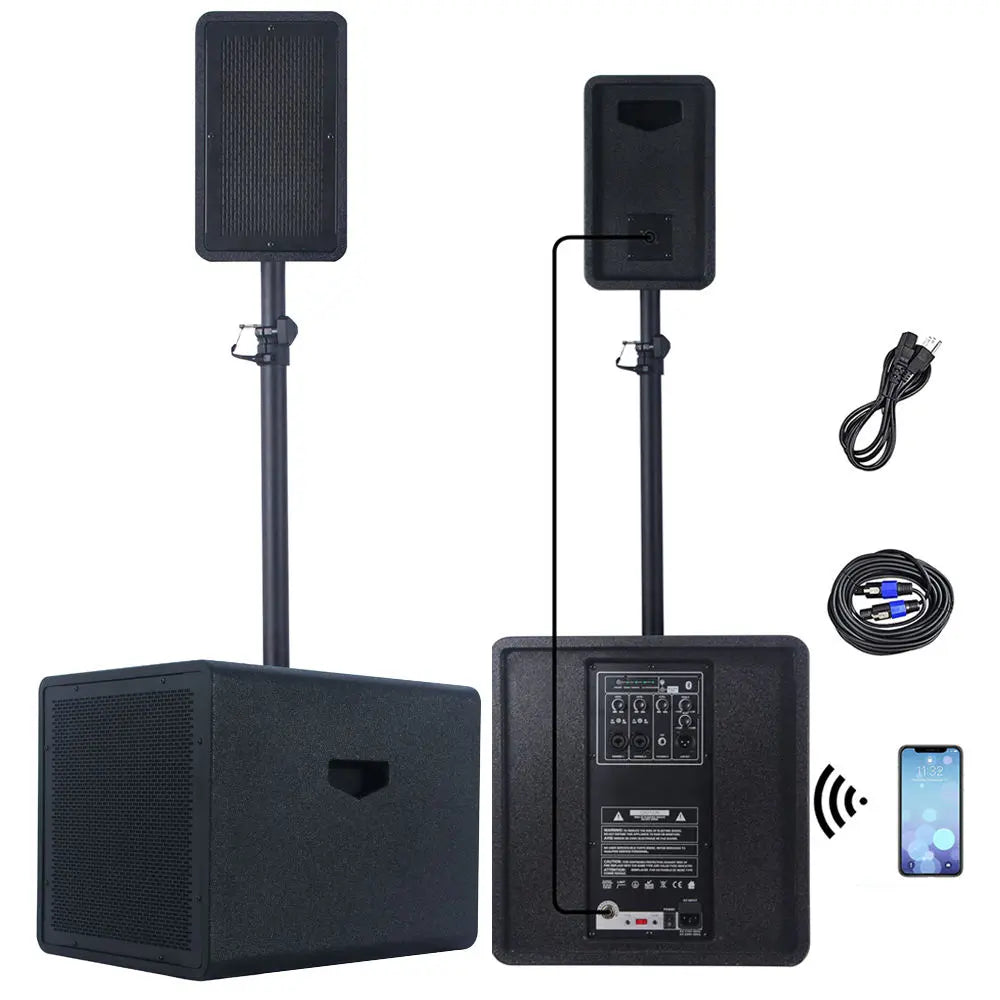

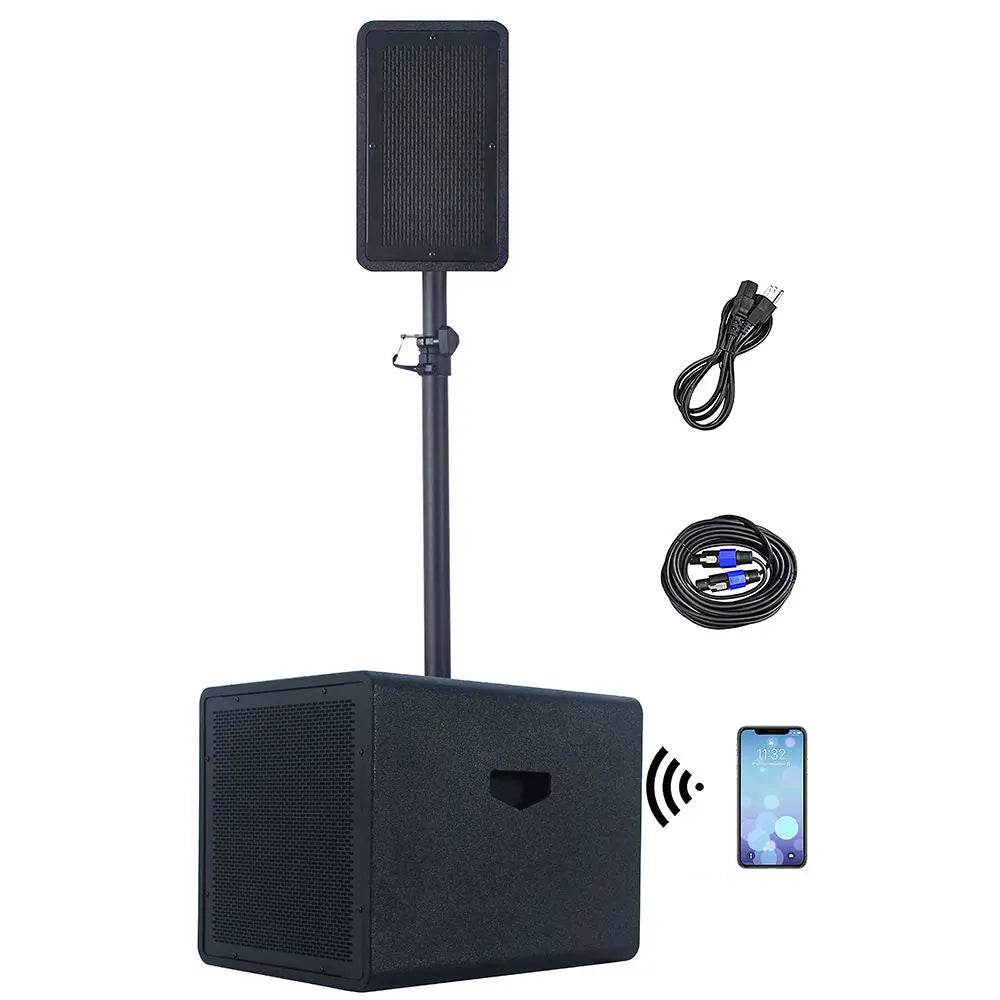

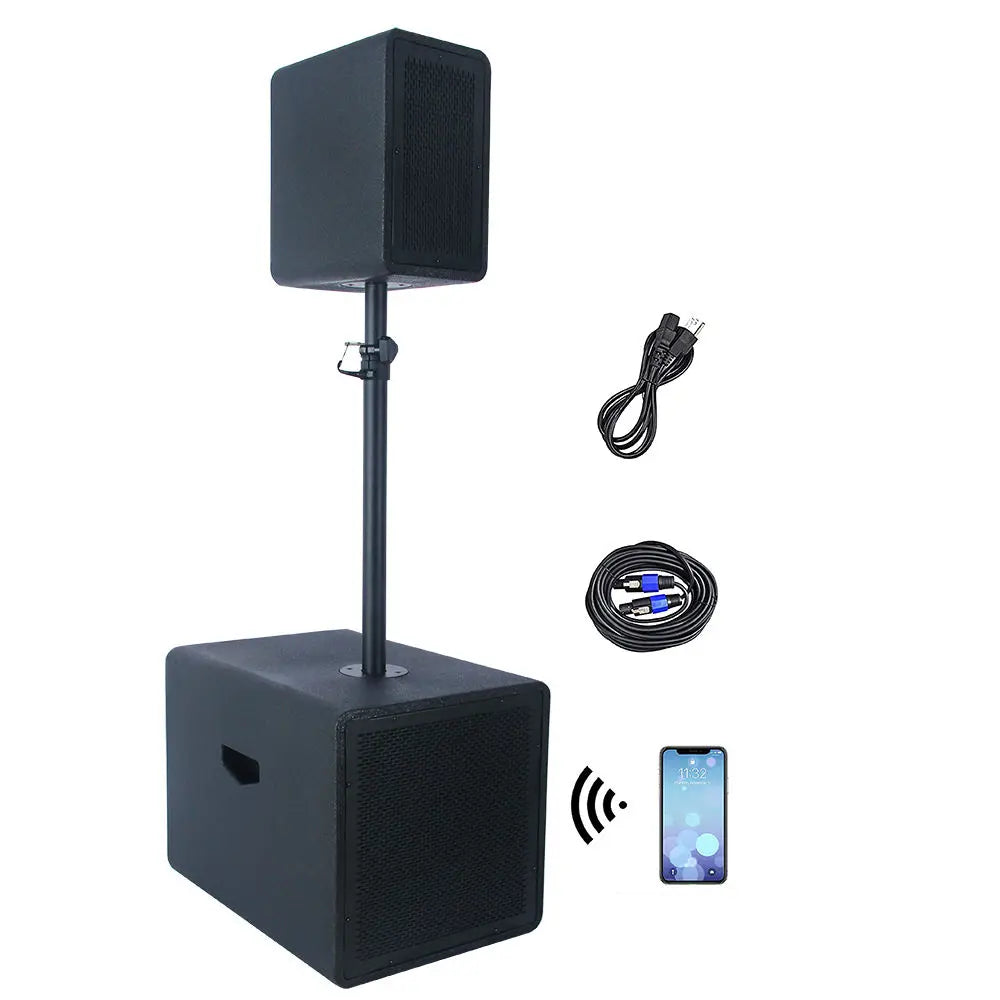

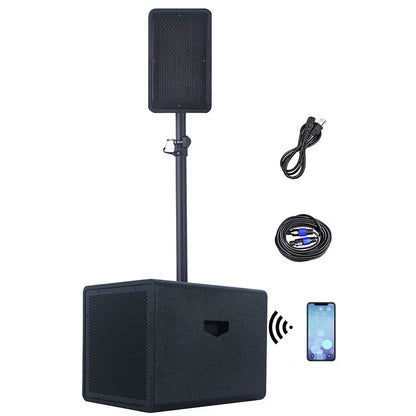

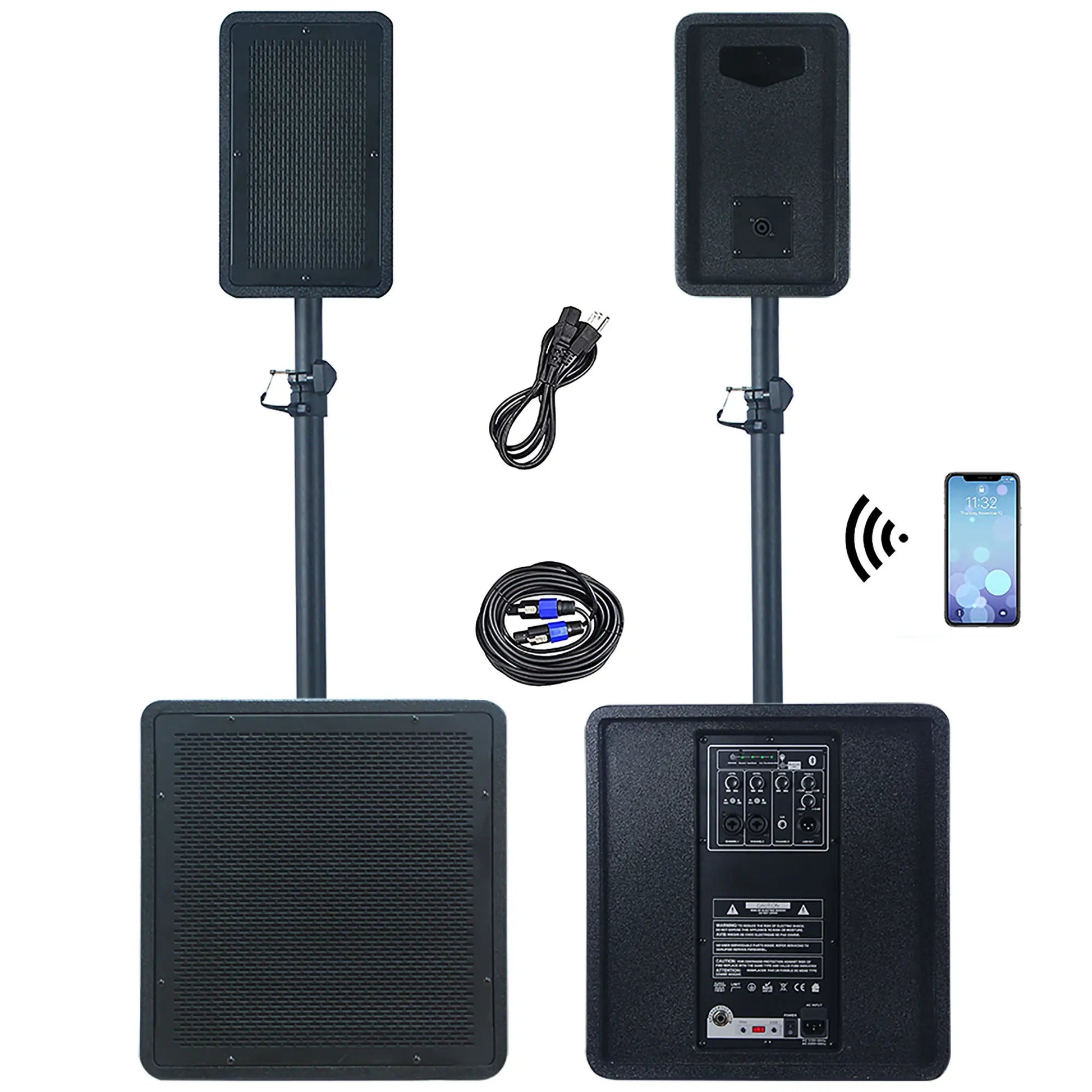

System Includes:

• 1× 12" Active 3-Way PA Speaker (Wooden Cabinet)
• 1× 1M Speaker Stand
• 1× 3m Unbalanced Speaker Cable
• 1× Power Cable

Key Features:

• ✅ 600W total power (400W LF + 200W HF) – Class D
• ✅ 1.1 channel active 3-way system
• ✅ 12" active subwoofer – wooden cabinet
• ✅ 6" midrange driver + 1" horn tweeter
• ✅ 120dB peak SPL – powerful output
• ✅ 60Hz-20kHz wide frequency range
• ✅ Powerful DSP with 4 sound programs
• ✅ Music / Live / Language / DJ-Club presets
• ✅ On-board DSP limiting for system protection
• ✅ 3-channel built-in mixer
• ✅ 2 x 1/4" TS/XLR mic/line inputs
• ✅ 1 pair 3.5mm stereo input
• ✅ 1 x XLR line output for expansion
• ✅ Powder-coated perforated steel grille
• ✅ Portable wooden cabinet design
• ✅ Global power supply (100-240V switchable)
• ✅ Complete system – stand & cables included

Applications:

• Parties & Celebrations
• Karaoke & Singing Events
• DJ Events & Mobile DJs
• Live Performances & Bands
• Public Speaking & Presentations
• Corporate Events & Conferences
• House of Worship & Churches
• Rental & Production Companies
• Bars, Clubs & Restaurants
• Outdoor Events & Festivals

System Configuration:

This 1.1 channel 3-way active system integrates a 12" subwoofer, 6" midrange driver, and 1" horn tweeter in a single wooden cabinet. The built-in Class D amplifier, DSP processor, and 3-channel mixer make this a complete all-in-one solution. Simply connect your microphones or sources, mount on the included stand, and you're ready for any event.

Why Choose This Active PA System:

The RC-PA-008 combines professional 3-way full-range sound, powerful DSP with 4 selectable programs, and a built-in 3-channel mixer in a portable wooden cabinet. Perfect for DJs, musicians, karaoke hosts, and event professionals, this all-in-one system eliminates the need for external amplifiers, processors, or mixers. With 600W of Class D power, 120dB SPL, and complete accessories including stand and cables, this system is ready to perform right out of the box.
