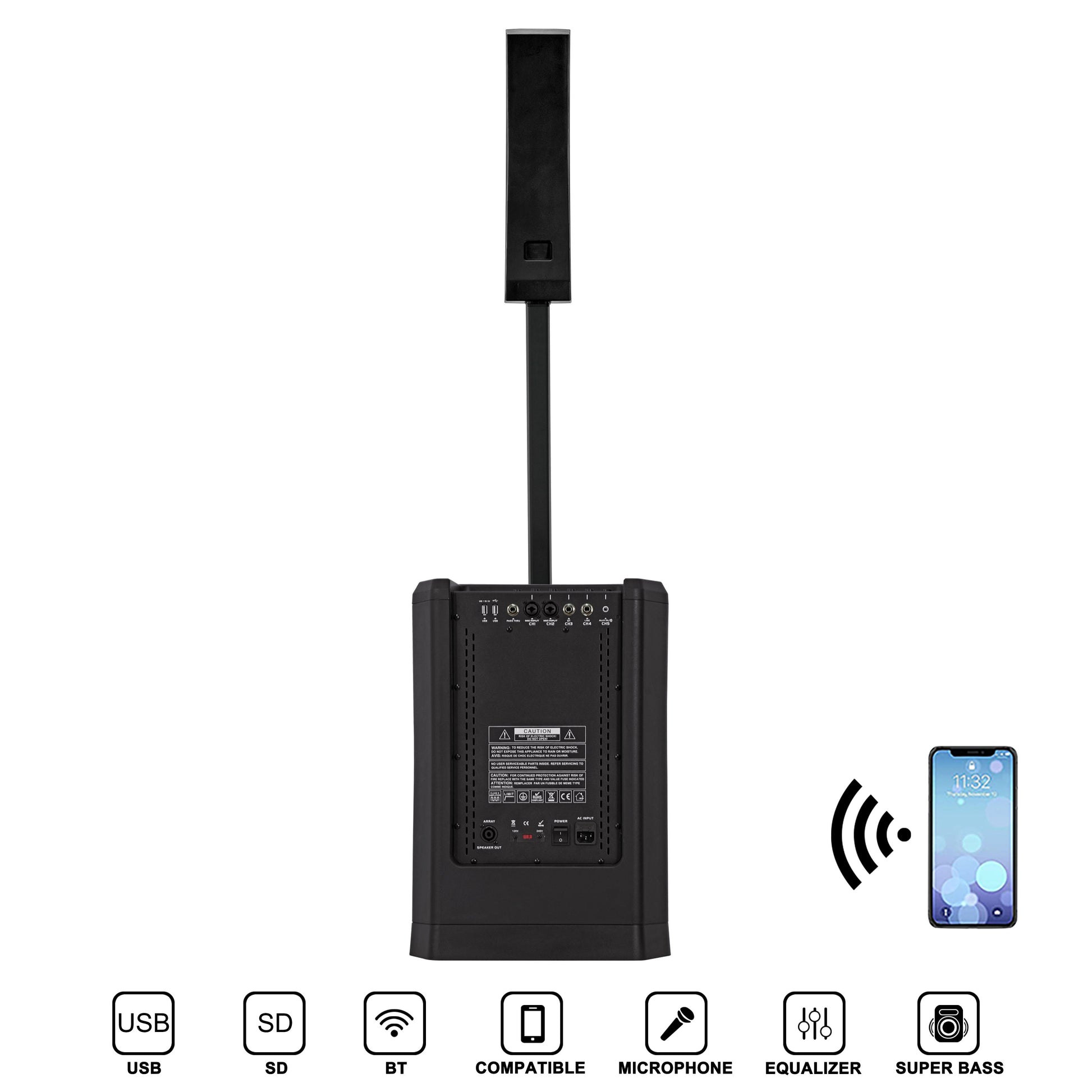

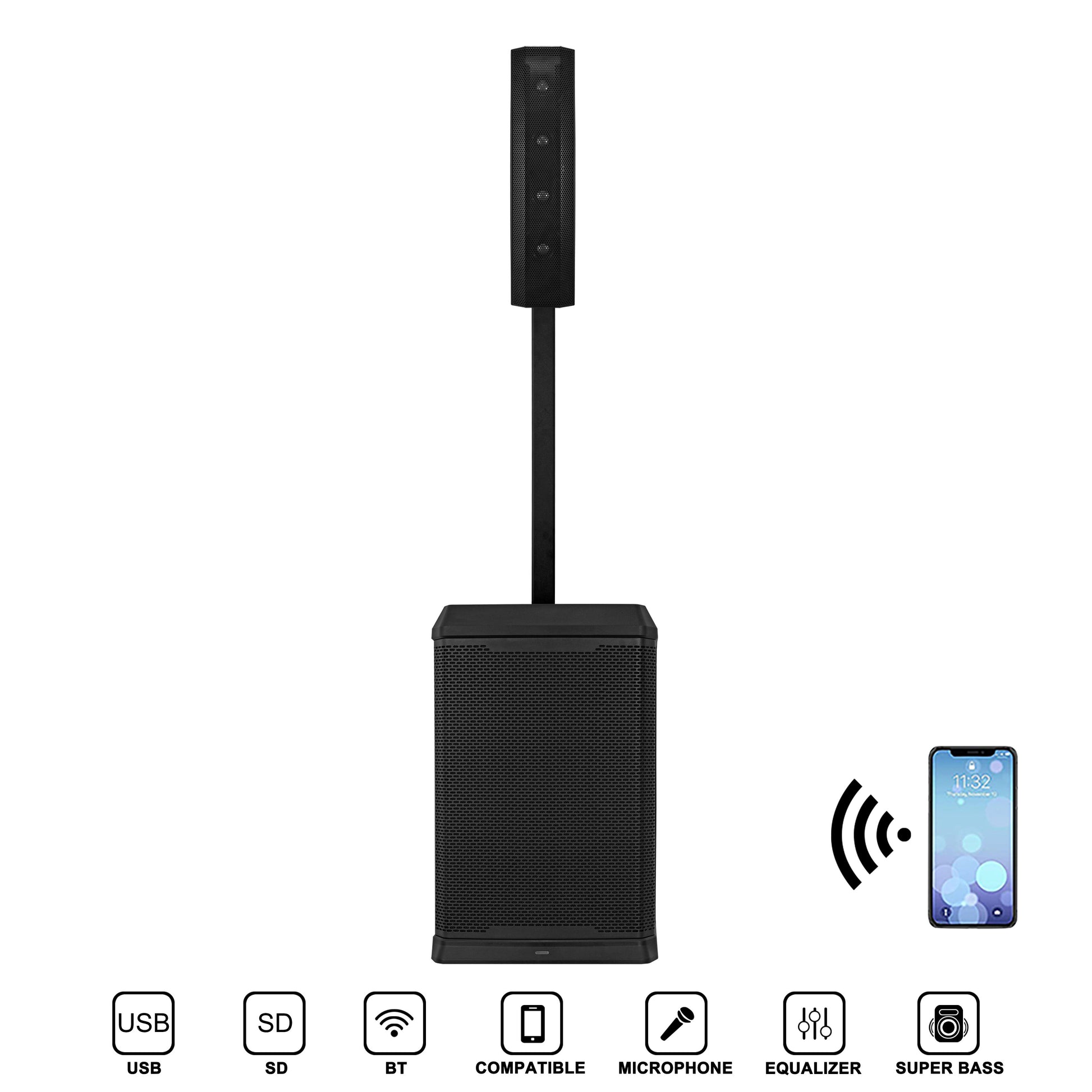

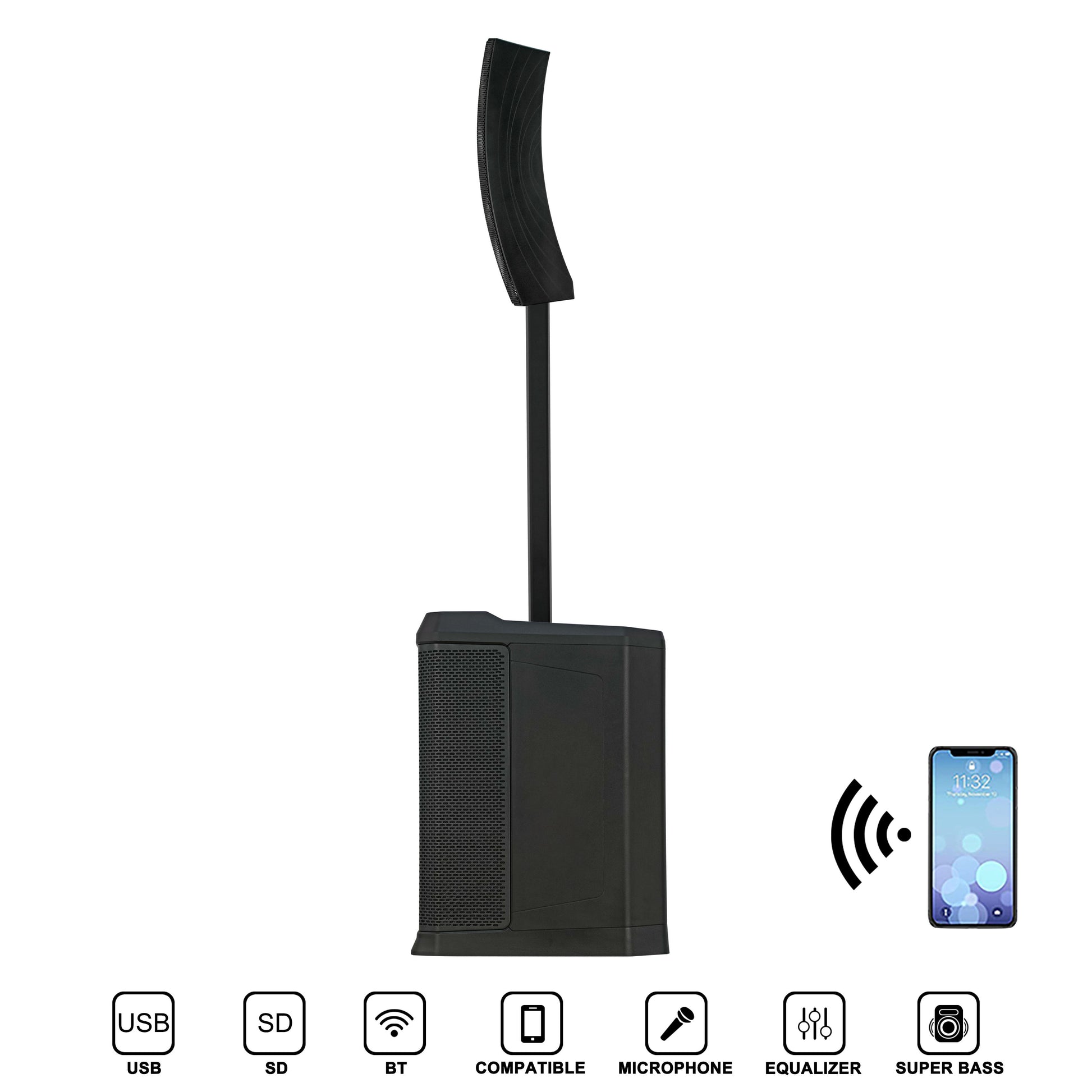

Professional Active Array Column Speaker PA System – 12" Subwoofer, DSP, Bluetooth TWS, Karaoke

Model No.: RC-LA-001

The IRRICO RC-LA-001 is a professional active array column speaker PA system featuring a 12" subwoofer (50oz, 60mm VC), 4x 4" midrange drivers, 4x 1" dome tweeters, and powerful DSP with 4 preset sound programs. With Bluetooth 5.0 TWS, integrated media player, comprehensive connectivity, and 130dB peak SPL, this 1.1-channel external wireless design system is perfect for parties, karaoke, live sound, DJ events, and installed applications.

Complete 4-Way Array System – Features 1x 12" subwoofer (50oz, 60mm voice coil) for powerful low end, 4x 4" midrange drivers for clear vocals, and 4x 1" dome tweeters for crisp highs. Frequency response from 40Hz to 20kHz covers the full audio spectrum.

130dB Peak SPL – Massive 130dB maximum sound pressure level fills venues of all sizes with crystal-clear, high-impact sound. Perfect for parties, live events, and DJ performances.

Powerful DSP with 4 Preset Modes – Built-in DSP (Digital Signal Processing) with 4 optimized sound programs: MUSIC, LIVE, SPEECH, and DJ/CLUB. Switch with one click for instant optimization. Features 5-band EQ within DSP settings for fine-tuned control.

Integrated Media Player with LCD Display – Built-in media player supports MP3 and WAV playback formats via USB port. LCD display shows track information and status. Features Mic Priority, Vocal, Echo, Reverb, and Guitar effects functions.

Bluetooth 5.0 with TWS Function – Built-in Bluetooth 5.0 receiver with True Wireless Stereo (TWS) allows wireless connection between two speakers for expanded stereo coverage. Stream music directly from any Bluetooth-enabled device.

Comprehensive Connectivity – 2-channel combo TRS/XLR for mic inputs, 2-channel TRS and AUX jacks for line input, 1-channel TRS jack for guitar input, and 1-channel PASS THRU for line output. 2-band graphic EQ (Bass + Treble) for quick tonal adjustment.

Individual Level Controls – Dedicated volume controls for Mic, Guitar, Line, and AUX inputs allow precise mixing of multiple sources without an external mixer.

Wooden Subwoofer Cabinet – 12" subwoofer features a wooden cabinet for superior acoustic performance, reduced resonance, and professional appearance. Top unit with plastic cabinet for lightweight portability.

Built-in USB Charging Port – DC 5V/2A USB charging port keeps mobile devices powered during long events. Charge smartphones, tablets, or other USB devices directly from the speaker.

Signal & Limit Indicators – Built-in LED indicators for signal presence and limiter activation help users monitor levels and prevent distortion or damage.

Global Power Compatibility – Operates on AC 110V or AC 230V at 60/50Hz for worldwide use. Perfect for international events and export.

Complete Package – Includes 1 power cable and 1 support stand for quick and easy setup.

Specifications:

• Model No.: RC-LA-001
• Product Name: Professional Active Array Column Speaker PA System
• System Type: 1.1 Channel External Wireless Design
• Subwoofer: 1× 12" (50oz, 60mm Voice Coil)
• Midrange Drivers: 4× 4"
• Tweeters: 4× 1" Dome Tweeter
• Frequency Range: 40Hz – 20kHz
• Peak SPL: 130dB
• Amplifier: Class D with DSP
• DSP Presets: MUSIC, LIVE, SPEECH, DJ/CLUB (4 modes)
• DSP EQ: 5-Band Graphic EQ
• Graphic EQ: 2-Band (Bass + Treble)
• Media Player: Integrated with LCD Display (MP3, WAV)
• Bluetooth Version: 5.0 with TWS Function
• USB Port: Playback + Charging (DC 5V/2A)
• Effects: Mic Priority, Vocal, Echo, Reverb, Guitar Effects
• Mic Inputs: 2-Channel Combo TRS/XLR
• Line Inputs: 2-Channel TRS + AUX Jack
• Guitar Input: 1-Channel TRS Jack
• Line Output: 1-Channel PASS THRU
• Indicators: Signal + Limit
• Subwoofer Cabinet: Wooden
• Top Unit Cabinet: Plastic
• Power Voltage: AC 110V or AC 230V (60/50Hz)
• Accessories: Power Cable, Support Stand

DSP Preset Modes:

• 🎵 MUSIC – Optimized for music playback
• 🎤 LIVE – Enhanced for live performances
• 🗣️ SPEECH – Clear vocal intelligibility
• 🎧 DJ/CLUB – Powerful bass for dance music

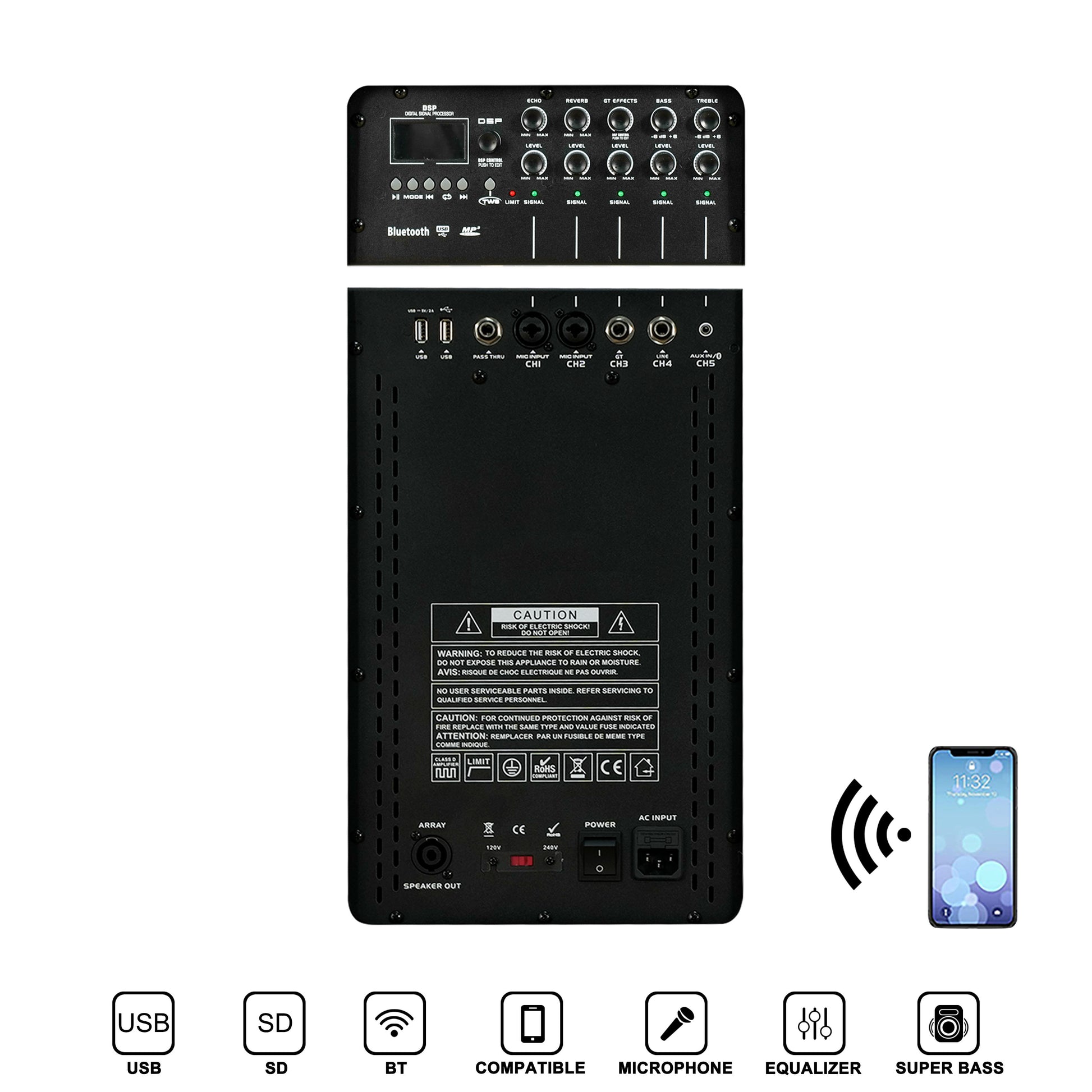

Connectivity Summary:

• 2× Combo TRS/XLR Mic Inputs (individual level control)
• 2× TRS Line Inputs (individual level control)
• 1× AUX Line Input (individual level control)
• 1× TRS Guitar Input (individual level control)
• 1× PASS THRU Line Output
• USB Port (playback + 5V/2A charging)
• Bluetooth 5.0 Wireless Input (with TWS)

Key Features:

• ✅ 12" subwoofer (50oz, 60mm VC) + 4×4" mids + 4×1" tweeters
• ✅ 40Hz-20kHz full-range frequency response
• ✅ 130dB peak SPL – powerful output
• ✅ DSP with 4 sound presets (Music/Live/Speech/DJ)
• ✅ 5-band DSP EQ + 2-band graphic EQ
• ✅ Bluetooth 5.0 with TWS wireless stereo
• ✅ Integrated media player with LCD display
• ✅ Mic Priority, Echo, Reverb & Guitar effects
• ✅ 2 combo mic inputs (TRS/XLR)
• ✅ Dedicated guitar input with level control
• ✅ USB charging port (5V/2A)
• ✅ Signal & Limit LED indicators
• ✅ Wooden subwoofer cabinet + plastic top unit
• ✅ Global power supply (110V/230V switchable)
• ✅ Includes support stand & power cable

Applications:

• Live Sound & Band Performances
• Parties & Events
• Karaoke & Singing Events
• DJ & Club Events
• House of Worship & Auditoriums
• Corporate Events & Conferences
• Rental & Production Companies
• Restaurants, Bars & Cafés
• Outdoor Events & Festivals

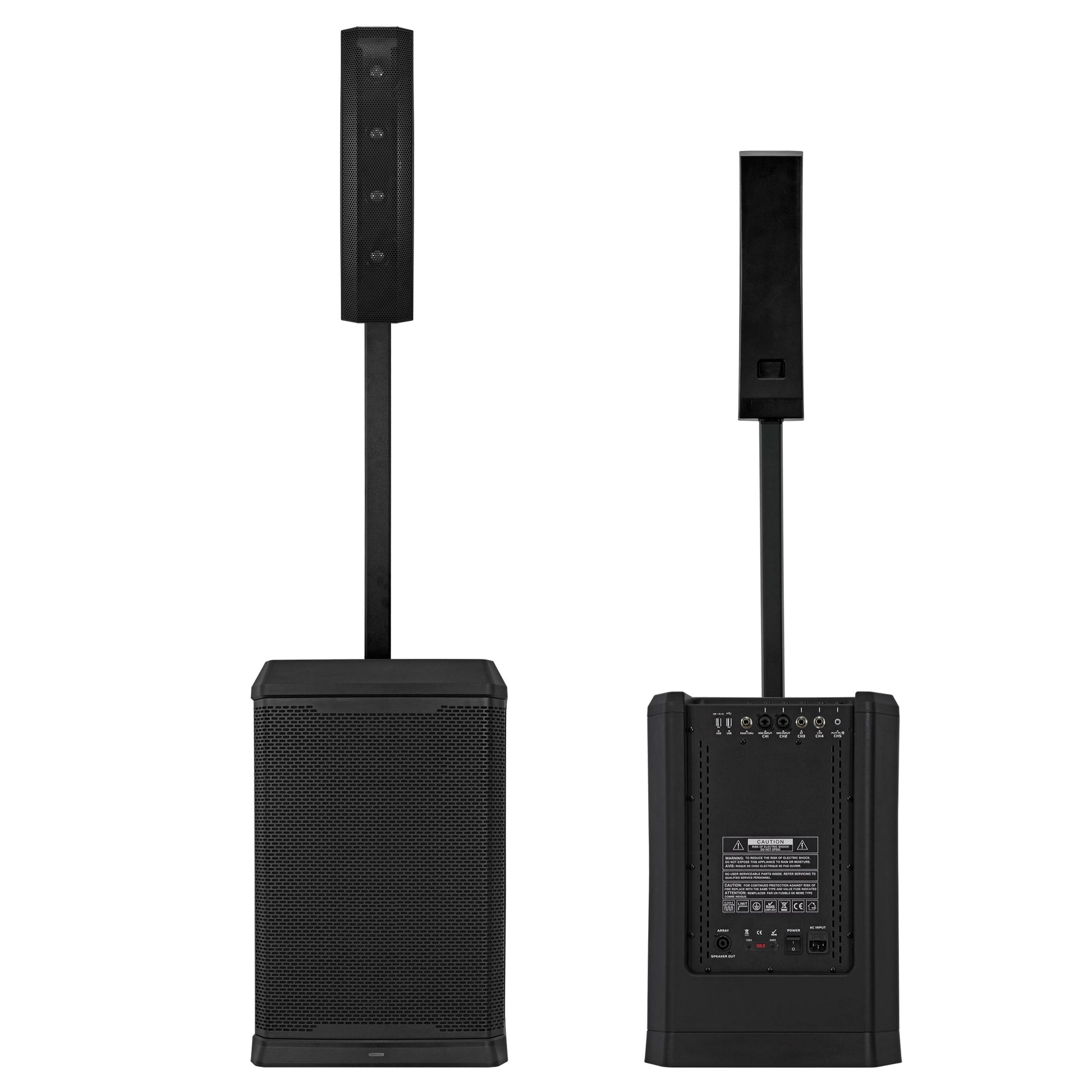

Cabinet Construction:

• Subwoofer: Wooden cabinet for superior low-end performance
• Top Array: Lightweight plastic cabinet for easy transport

Package Includes:

• 1× Active Array Column Speaker System (Subwoofer + Top Array)
• 1× Support Stand
• 1× Power Cable

Why Choose This Column Array System:

Traditional PA systems require separate subwoofers, tops, amplifiers, and mixers. The RC-LA-001 integrates everything into a sleek, portable column array design. The 1.1-channel configuration with external wireless design provides clean, professional appearance while delivering powerful, full-range sound. With 130dB SPL, Bluetooth TWS, and comprehensive DSP control, this system handles any event from karaoke nights to live band performances.
