80,000W 18" Active Subwoofer – High-Performance Array Line PA System with 4 Preset DSP Effects

Model No.: RC-LA-008

The IRRICO RC-LA-008 is a professional high-performance active array line PA system featuring an 18" active subwoofer (80,000W peak, 500W+300W RMS Class D) and 3× plastic array line cabinets. With 4 preset DSP effects (Standard, Vocal Boost, Live, Floor/Monitor), 127dB max SPL, 35Hz-20kHz frequency response, Bluetooth 5.0, 16 karaoke FX presets, and comprehensive connectivity, this powerful system is perfect for large venues, concerts, stage monitoring, outdoor events, and professional sound reinforcement.

Massive 80,000W Peak Power – Delivers 80,000W peak (500W+300W RMS) Class D amplifier power through an 18" active subwoofer with 100oz magnet and 100mm voice coil. High-performance array line PA system provides exceptional clarity and impact for the largest venues.

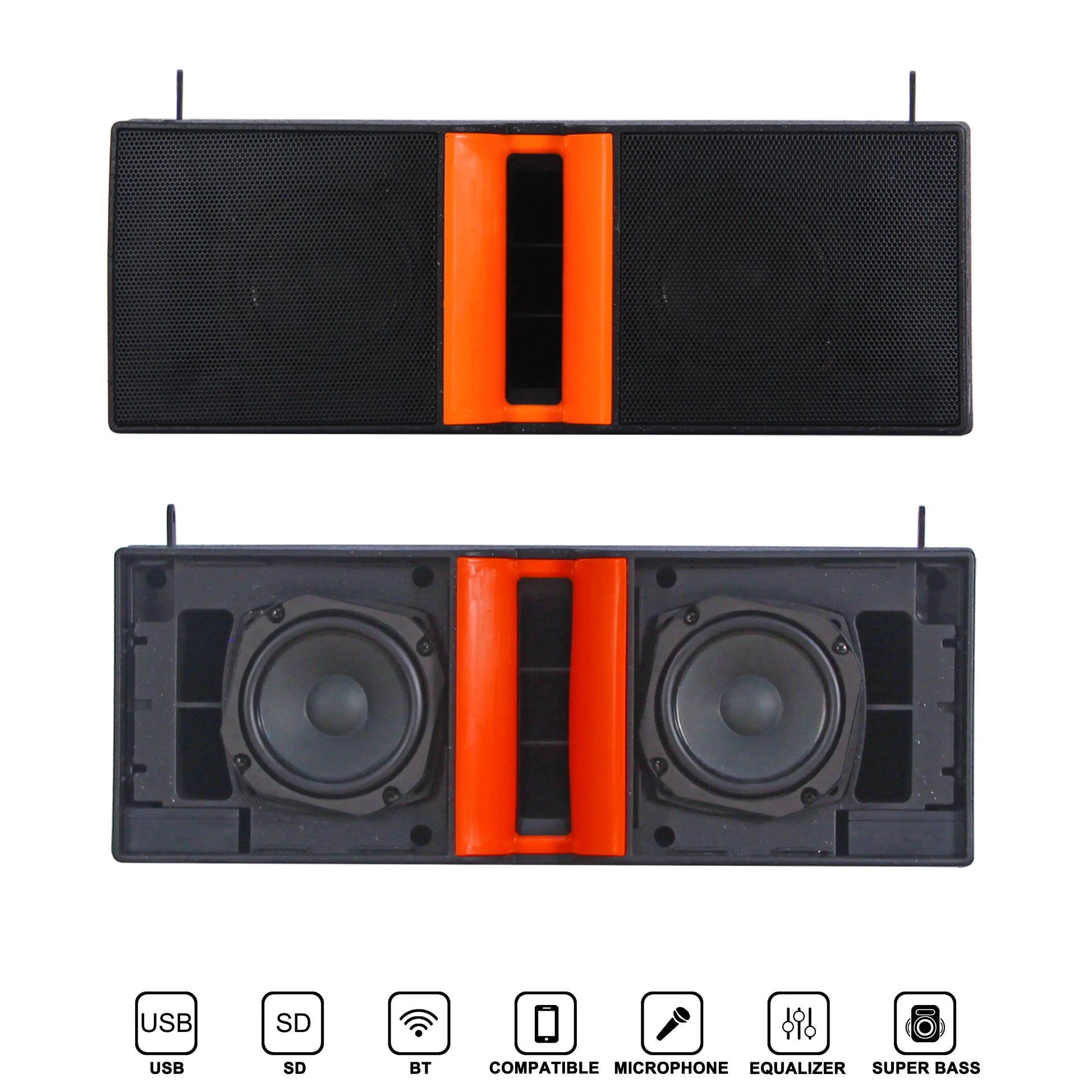

Complete Array Line System – Consists of an 18" subwoofer (wooden cabinet) paired with 3× plastic array line cabinets. Top unit features 6×4" midrange speakers and 3× compression tweeters for wide, even coverage.

4 Preset DSP Effects – Built-in DSP with 4 preset effects: Standard, Vocal Boost, Live, and Floor/Monitor. Instantly optimize your sound for any application – from music playback to live performances to floor monitoring.

127dB Max SPL & Wide Frequency Response – Exceptional 127dB maximum sound pressure level with frequency response from 35Hz to 20,000Hz (+/-10dB) covers the full audio spectrum – from deep sub-bass to sparkling highs.

120° x 90° Horn Characteristics – Wide dispersion pattern provides excellent coverage for large venues and audiences – perfect for concerts, stages, and events.

Bluetooth 5.0 with 16 Karaoke FX Presets – Latest Bluetooth 5.0 technology for stable, fast wireless streaming. 16 built-in karaoke FX presets including Master, Mic, and Karaoke FX Level volume controls for professional vocal processing.

Backlit LCD Display – Backlit LCD display shows USB input status and DSP effect selection – clear and easy to read in any lighting condition.

Comprehensive Connectivity & Control – Features 2 switchable mic/line inputs (XLR/TRS jack combo), 2 channel stereo inputs (RCA and AUX), and 2 channel mix outputs (XLR). Independent SUB and Column speaker level controls, Sub Crossover adjustment, and Phase Function Button.

Professional-Grade Components – 18" bass speaker with 100oz magnet and 100mm voice coil in wooden cabinet for superior low-end performance. Top unit with 6×4" midrange speakers and 3× compression tweeters for clear, detailed highs.

Complete System Package – Includes power cable, 4 connector cables, and user manual. Packaged in gift box or carton box with foam protector for safe shipping.

Specifications:

• Model No.: RC-LA-008
• System Type: High-Performance Active Array Line PA System
• Peak Power: 80,000W
• RMS Power: 500W + 300W (Class D Amplifier)
• Max SPL: 127 dB
• Frequency Response (+/-10dB): 35Hz – 20,000Hz
• Horn Characteristics: 120° × 90°
• Subwoofer: 18" Active (Wooden Cabinet, 100oz Magnet, 100mm Voice Coil)
• Array Cabinets: 3× Plastic Array Line Cabinets
• Top Unit: 6×4" Midrange Speakers + 3× Compression Tweeters
• DSP: 4 Preset Effects (Standard / Vocal Boost / Live / Floor-Monitor)
• Karaoke FX: 16 Presets
• Display: Backlit LCD
• Bluetooth Version: 5.0
• Mic/Line Inputs: 2 Switchable (XLR/TRS Jack Combo)
• Stereo Inputs: 2 Channel (RCA + AUX)
• Mix Outputs: 2 Channel (XLR)
• Controls: Master, Mic, Karaoke FX Level, SUB Level, Column Speaker Level, Sub Crossover Adjustment, Phase Function Button
• Media Playback: USB Input
• Accessories: Power Cable, 4× Connector Cables, User Manual
• Packaging: Gift Box or Carton Box with Foam Protector

DSP Preset Effects (4 Modes):

• 🎵 Standard – General purpose optimization for music playback
• 🎤 Vocal Boost – Enhanced vocal clarity for singing and speech
• 🎸 Live – Optimized for live performances and bands
• 📢 Floor/Monitor – Calibrated for floor monitor / stage wedge use

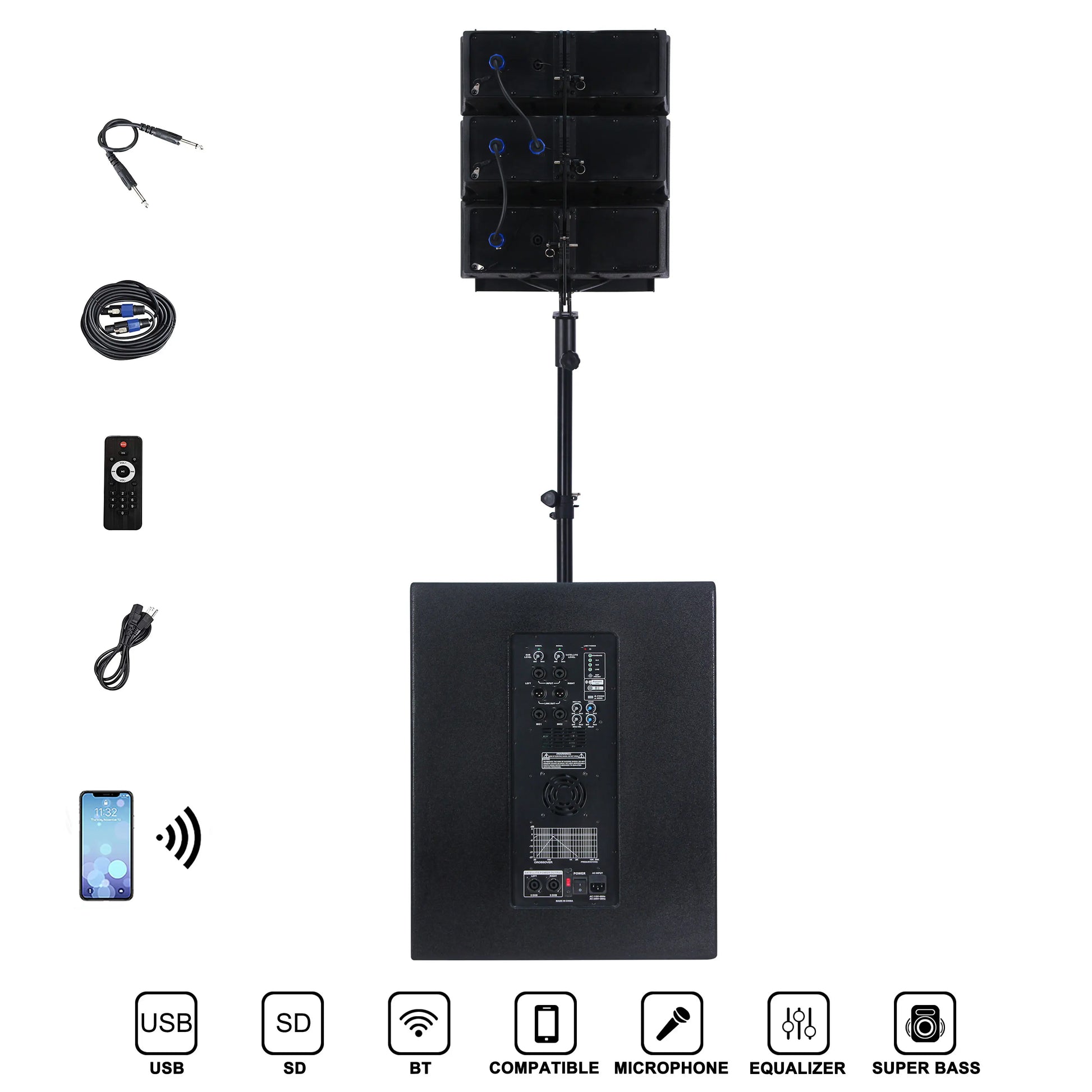

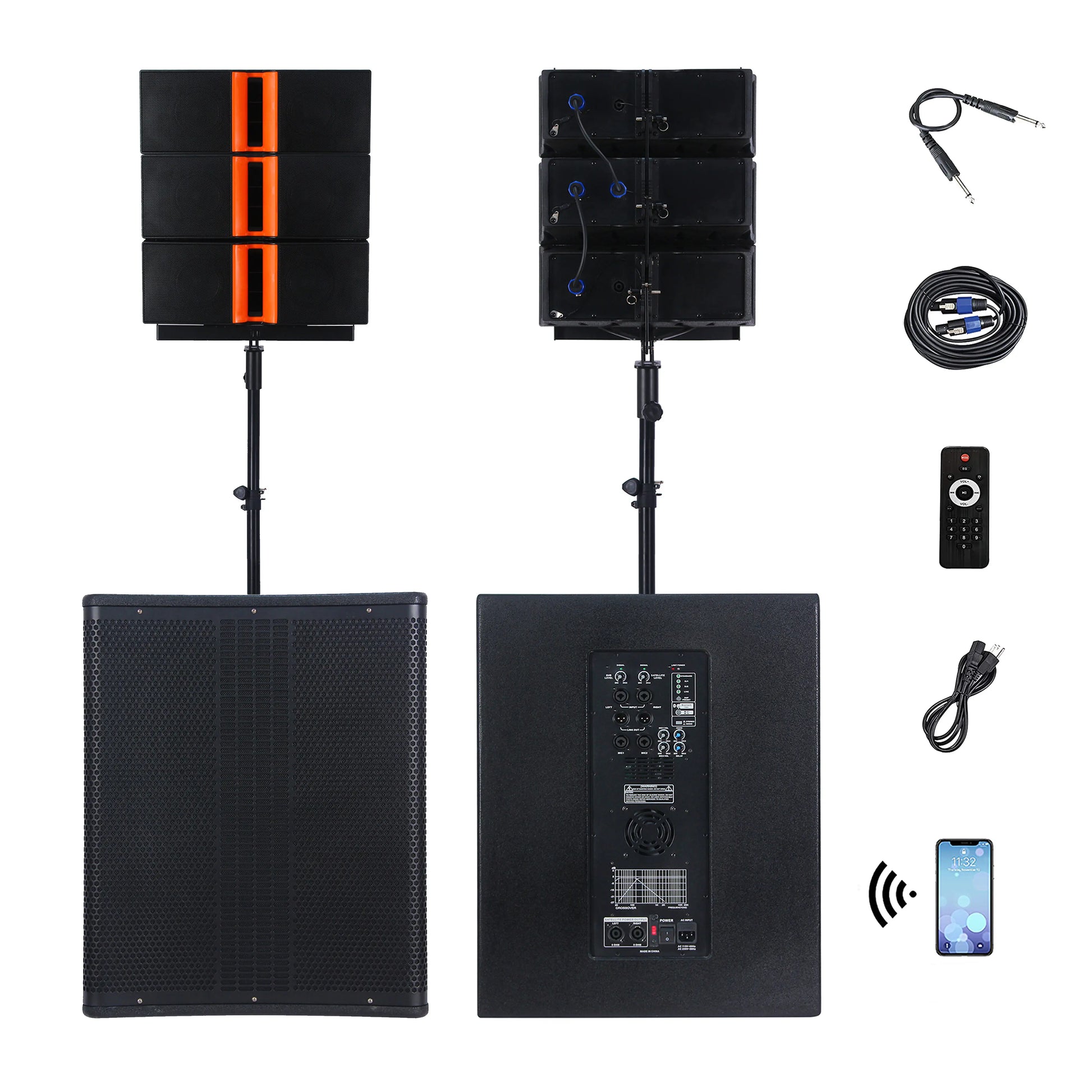

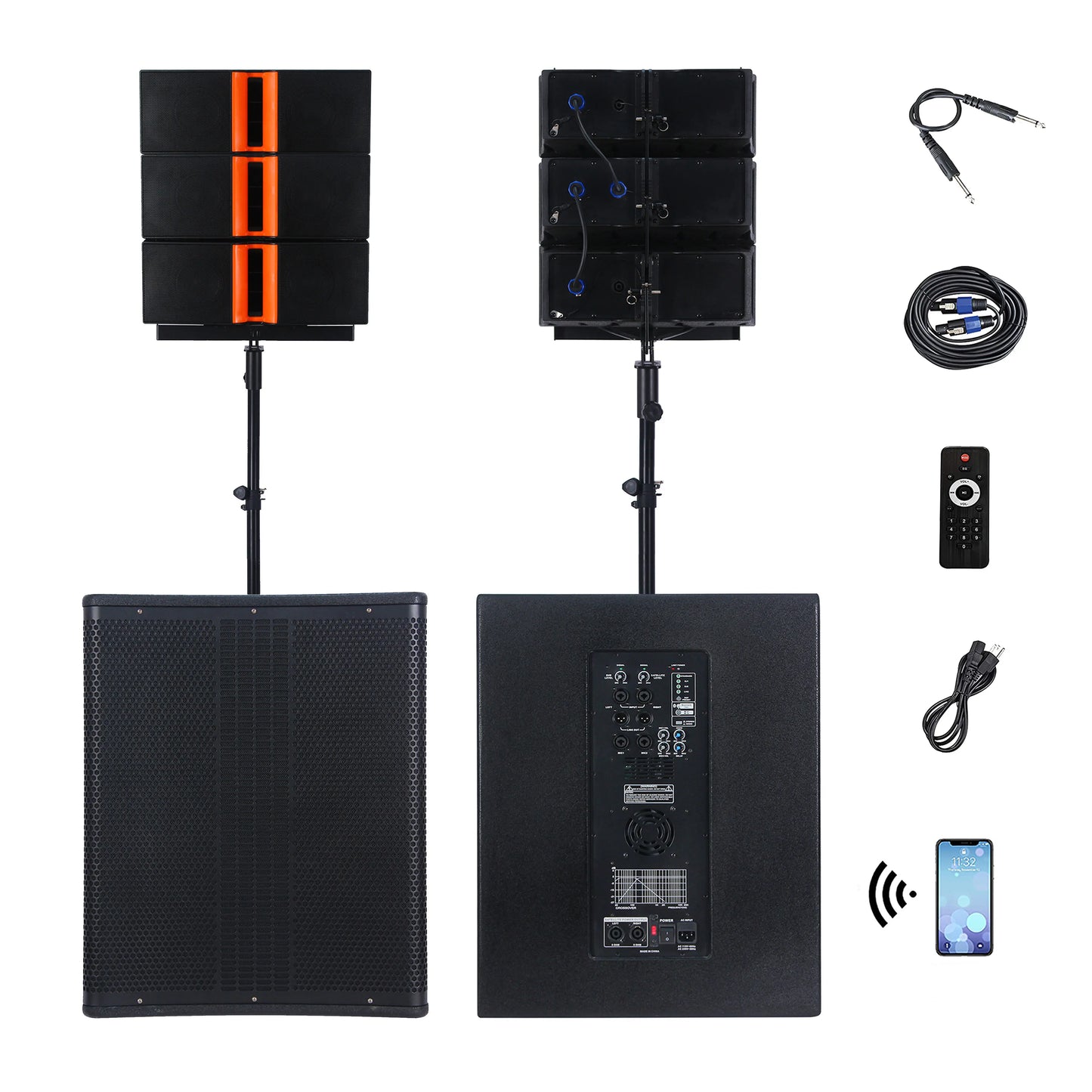

System Includes:

• 1× 18" Active Subwoofer (Wooden Cabinet, 100oz Magnet, 100mm VC)
• 3× Array Line Cabinets (Plastic, 6×4" Mid + 3× Compression Tweeters)
• 1× Power Cable
• 4× Connector Cables
• 1× User Manual

Key Features:

• ✅ 80,000W peak / 500W+300W RMS – Class D power
• ✅ 18" active subwoofer – wooden cabinet, 100oz magnet, 100mm VC
• ✅ 3× plastic array line cabinets – 6×4" mid + 3× compression tweeters
• ✅ 127dB max SPL – exceptional output
• ✅ 35Hz-20kHz wide frequency response
• ✅ 120° × 90° horn coverage
• ✅ 4 preset DSP effects (Standard/Vocal Boost/Live/Floor-Monitor)
• ✅ 16 karaoke FX presets
• ✅ Backlit LCD display
• ✅ Bluetooth 5.0 wireless streaming
• ✅ 2 switchable mic/line inputs (XLR/TRS combo)
• ✅ 2 channel stereo inputs (RCA + AUX)
• ✅ 2 channel XLR mix outputs
• ✅ Independent SUB & Column speaker level controls
• ✅ Sub crossover adjustment & phase control
• ✅ Complete system – cables included

Applications:

• Large Venues & Concert Halls
• Stage Monitoring & Live Sound
• Outdoor Festivals & Events
• Professional PA & Sound Reinforcement
• House of Worship & Mega Churches
• Corporate Events & Conferences
• Rental & Production Companies
• Nightclubs & Large Entertainment Venues
• Sports Arenas & Stadiums
• Touring & Mobile Production

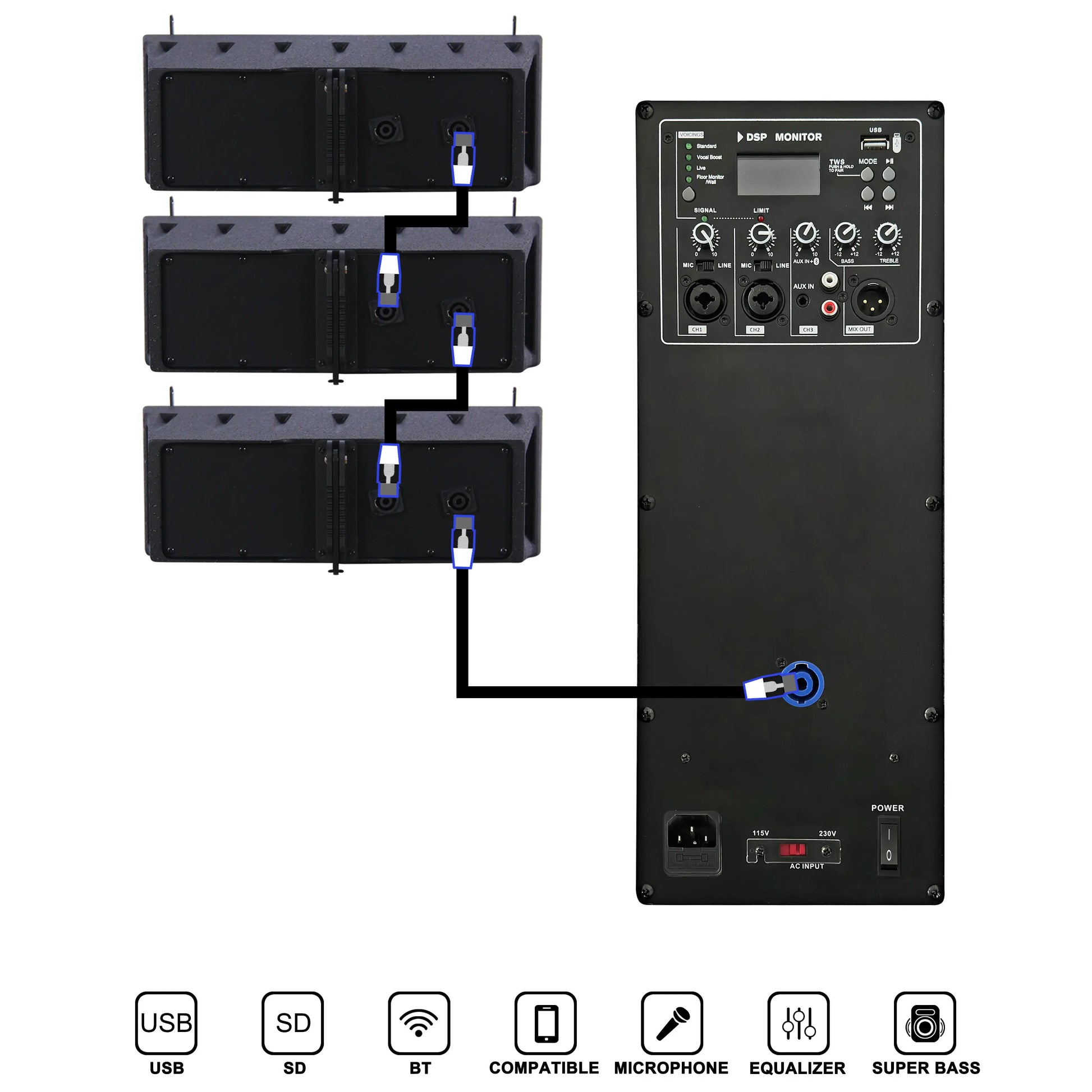

Connectivity Summary:

• 2× Combo Mic/Line Inputs (XLR/TRS) – switchable
• 2× Stereo Inputs (RCA + AUX)
• 2× XLR Mix Outputs
• USB Port – Media Playback
• Bluetooth 5.0 – Wireless Streaming

Control Features:

• Master Volume Control
• Mic Volume Control
• Karaoke FX Level Control
• SUB Level Control
• Column Speaker Level Control
• Sub Crossover Adjustment
• Phase Function Button
• 4 DSP Preset Effects
• 16 Karaoke FX Presets

Why Choose This High-Performance Array Line System:

The RC-LA-008 is a professional-grade high-performance array line PA system designed for the largest venues and most demanding applications. With an 18" active subwoofer featuring a massive 100oz magnet and 100mm voice coil, plus 3 array line cabinets with 6×4" midrange speakers and 3× compression tweeters, this system delivers exceptional clarity, power, and coverage. The 4 preset DSP effects and 16 karaoke FX presets provide complete sound optimization for any application – from concerts to stage monitoring to outdoor festivals. Built-in Bluetooth 5.0, backlit LCD display, and comprehensive connectivity make this system as versatile as it is powerful.
