4000W Active 18" Subwoofer – Bluetooth, DSP Class D, 1000W RMS, 128dB SPL, Adjustable Crossover

Model No.: RC-SW-001

The IRRICO RC-SW-001 is a professional active 18" subwoofer delivering 1000W RMS (4000W peak) Class D power with built-in Bluetooth 5.0, DSP with 4 preset modes, and adjustable crossover from 40-120Hz. With 128dB max SPL, plywood cabinet with polyurea finish, and comprehensive XLR connectivity, this subwoofer is designed for live sound, touring, rental, and permanent installations where deep, punchy bass is required.

Powerful Class D Amplifier – Delivers 1000W RMS (4000W peak) of clean, efficient power with a high-performance Class D amplifier featuring 4 preset DSP modes and aluminum panel construction. Get thunderous low-end without excessive weight or heat.

Massive 18" Active Subwoofer – Equipped with an 18" (125Oz magnet) active subwoofer driver producing deep, powerful bass down to 30Hz. Maximum SPL of 128dB fills any venue with earth-shaking low frequencies.

DSP with 4 Preset Modes – Built-in DSP (Digital Signal Processing) with 4 preset modes allows instant optimization for different applications and venues. Fine-tune your low-end response at the push of a button.

Adjustable Crossover & Phase Control – Switchable crossover filter from 40-120Hz with adjustable high cut, plus phase switch for seamless integration with main PA speakers. Fine-tune the subwoofer to match any system configuration.

Bluetooth 5.0 Built-in – Integrated Bluetooth 5.0 receiver allows wireless streaming directly to the subwoofer – perfect for background music, DJ setups, or system testing without additional cables.

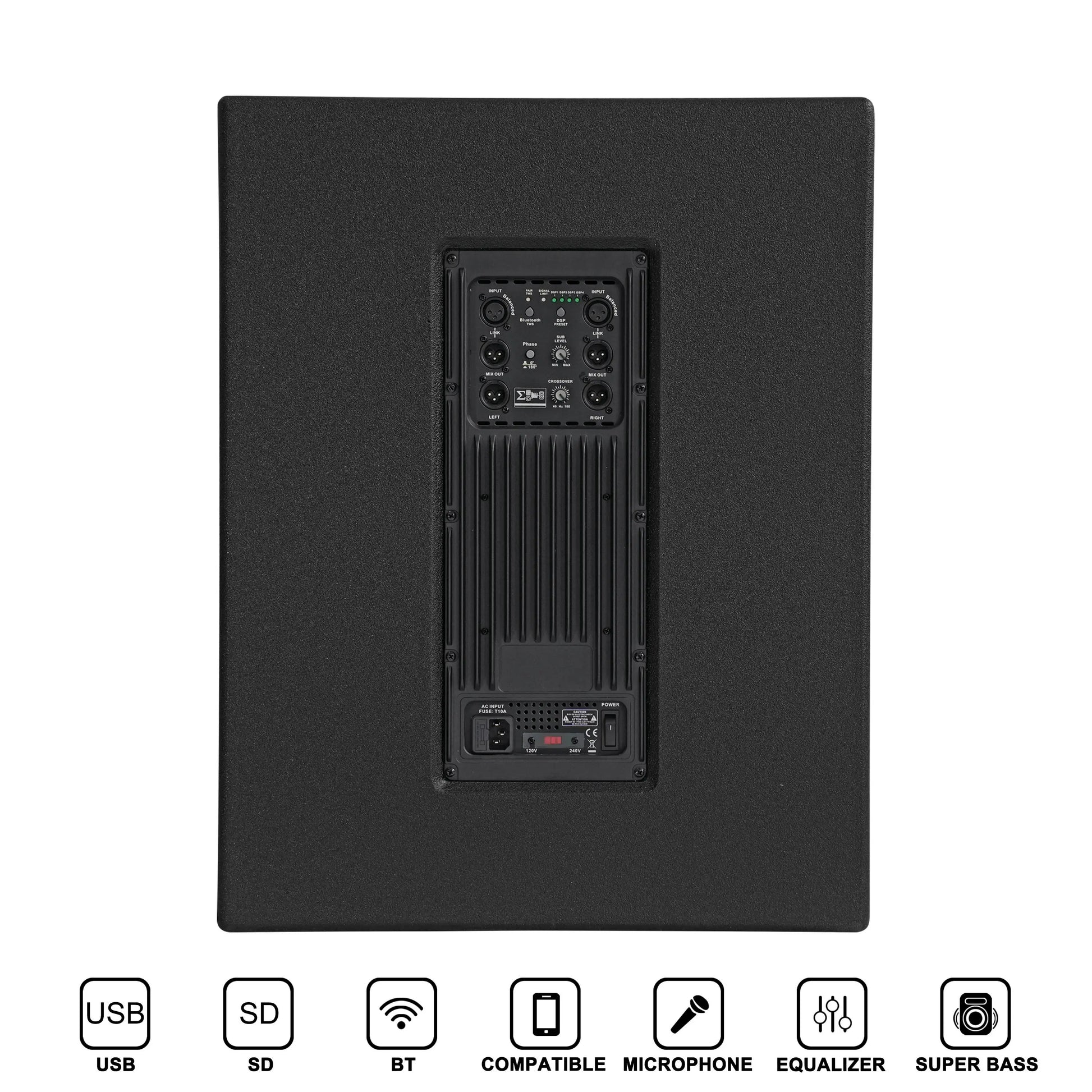

Comprehensive XLR Connectivity – Features XLR (L+R) input, XLR (L+R) through output, and XLR (L+R) crossover output for flexible system expansion and integration with existing PA systems.

Visual Status Indicators – Signal, Limit, and Power LED indicators provide at-a-glance monitoring of subwoofer status, helping prevent clipping and ensuring optimal performance.

Professional Plywood Cabinet – Tour-grade plywood cabinet with durable polyurea painted finish resists scratches, impacts, and weather. Built to withstand the rigors of touring and rental applications.

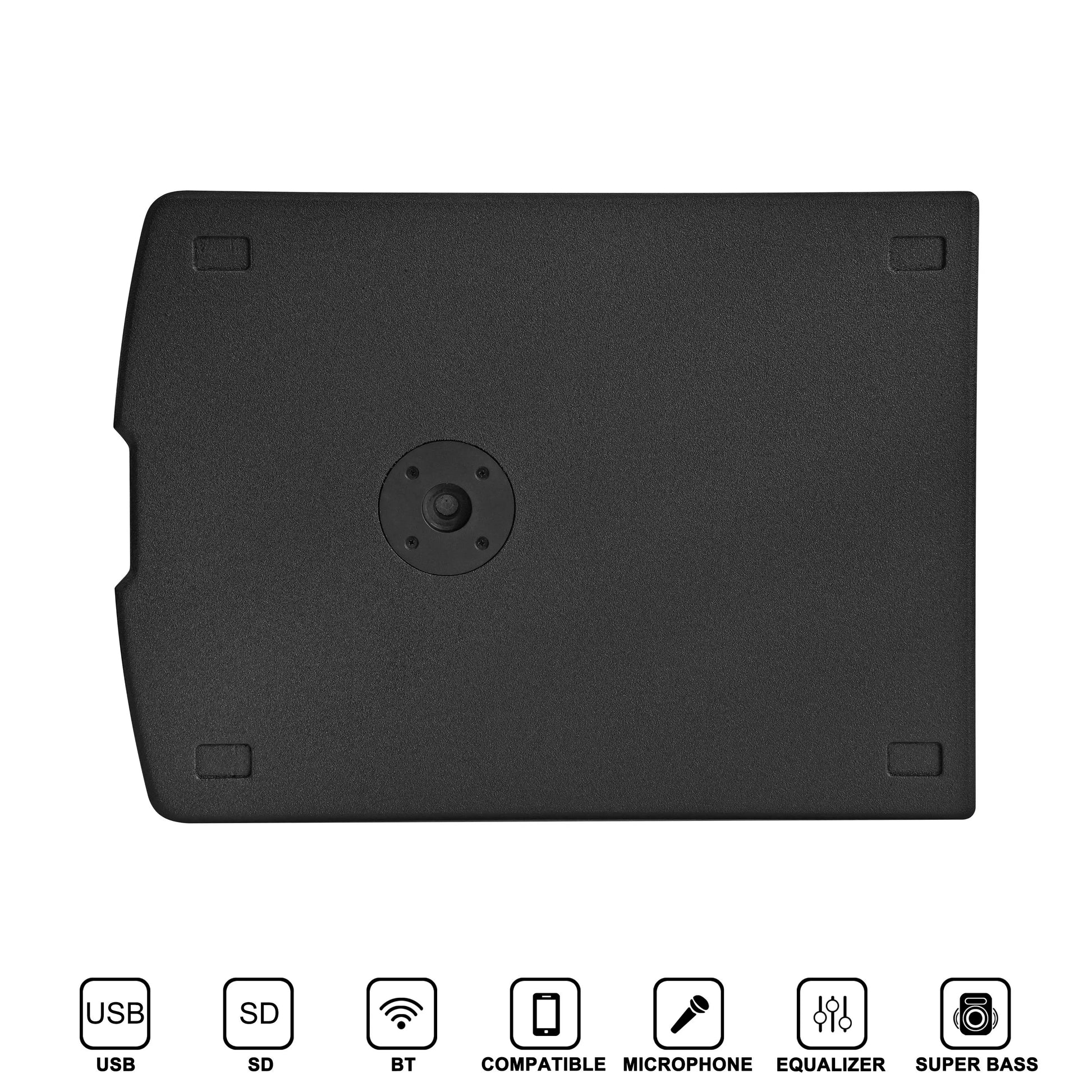

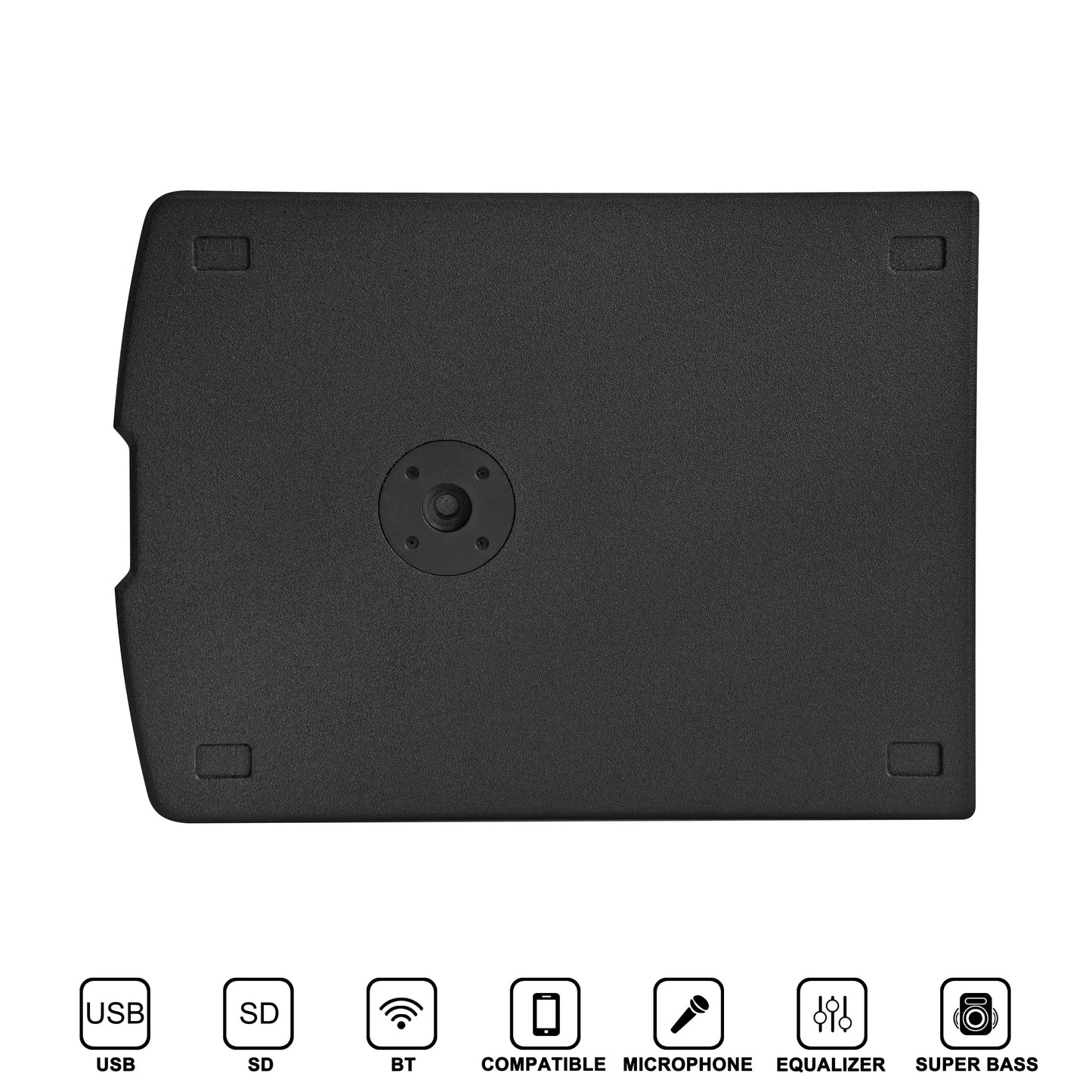

35mm Speaker Stand Mount – Standard 35mm flange mount allows easy integration with speaker stands or pole mounting under main PA speakers.

Global Power Compatibility – Switchable power supply accepts AC110V or AC220V at 60Hz/50Hz for worldwide use. Perfect for international touring and export.

Specifications:

• Model No.: RC-SW-001
• Product Type: Active 18" Powered Subwoofer
• Peak Power: 4000W
• RMS Power: 1000W
• Amplifier Type: Class D with DSP (4 Preset Modes)
• Driver: 18" (125Oz Magnet)
• Maximum SPL: 128 dB
• Frequency Range: 30 – 150 Hz
• Adjustable Crossover: 40 – 120 Hz (Switchable)
• High Cut: Adjustable
• Phase Switch: Yes
• Bluetooth Version: 5.0 (Built-in Receiver)
• Connectors: XLR (L+R) Input, XLR (L+R) Through, XLR (L+R) Crossover Out
• LED Indicators: Signal, Limit, Power
• Subwoofer Level Control: Yes
• Cabinet Material: Plywood with Polyurea Painted Finish
• Stand Mount: 35mm Speaker Flange Mount
• Power Supply: AC110V or AC220V (60Hz/50Hz Switchable)
• Accessories: Power Cable, User Manual

DSP Preset Modes:

• Mode 1: [Preset optimization for different applications]
• Mode 2: [Preset optimization for different applications]
• Mode 3: [Preset optimization for different applications]
• Mode 4: [Preset optimization for different applications]

Connectivity Summary:

• XLR (L+R) Input – Connect from mixer or source
• XLR (L+R) Through – Daisy-chain to additional subwoofers
• XLR (L+R) Crossover Out – Feed filtered signal to main speakers
• Bluetooth 5.0 – Wireless audio streaming

Key Features:

• ✅ 1000W RMS / 4000W Peak Class D power
• ✅ 18" active subwoofer with 125Oz magnet
• ✅ 128dB max SPL – earth-shaking low end
• ✅ 30-150Hz frequency range
• ✅ DSP with 4 preset modes
• ✅ Adjustable crossover 40-120Hz
• ✅ Phase switch for system integration
• ✅ Built-in Bluetooth 5.0 receiver
• ✅ XLR input, through & crossover outputs
• ✅ Signal, Limit & Power LED indicators
• ✅ Plywood cabinet with polyurea finish
• ✅ 35mm speaker stand flange mount
• ✅ Global power supply (110V/220V switchable)

Applications:

• Live Sound & Concert Systems
• Touring & Rental PA Systems
• Nightclubs & DJ Setups
• House of Worship & Auditoriums
• Festivals & Outdoor Events
• Permanent Installations
• Mobile DJ & Production Companies
• Home Theater & High-End Audio
• EDM & Electronic Music Events

Cabinet Construction:

• Tour-grade plywood material
• Durable polyurea painted finish
• Impact and scratch resistant
• Weather-resistant for outdoor use
• 35mm stand mount flange

Why Choose This Active Subwoofer:

The RC-SW-001 combines massive 1000W RMS power, flexible DSP control, and professional-grade construction in a single active subwoofer. No external amplifiers, crossovers, or processors needed – just plug in your mixer and experience deep, punchy bass down to 30Hz. The plywood cabinet and polyurea finish ensure years of reliable service in the most demanding environments.
